본 페이지에서는 Scatter Traces의 markers 모양과 크기 변경이나 테두리를 적용하여 style를 가미하는 방법을 알려드리겠습니다.
*key: marker, marker_size, marker_symbol, marker_line, marker_line_width 정보 참조
marker
Code: fig.update_traces(unselected_marker=dict(...), selector=dict(type='scatter'))
Type: dict containing one or more of the keys listed below.
size
Code: fig.update_traces(marker_size=<VALUE>, selector=dict(type='scatter'))
Type: number or array of numbers greater than or equal to 0
Default: 6
Sets the marker size (in px).
symbol
Code: fig.update_traces(marker_symbol=<VALUE>, selector=dict(type='scatter'))
Type: enumerated or array of enumerateds
Default: "circle"
Sets the marker symbol type. Adding 100 is equivalent to appending "-open" to a symbol name. Adding 200 is equivalent to appending "-dot" to a symbol name. Adding 300 is equivalent to appending "-open-dot" or "dot-open" to a symbol name.
line
Code: fig.update_traces(marker_line=dict(...), selector=dict(type='scatter'))
Type: dict containing one or more of the keys listed below.
width
Code: fig.update_traces(marker_line_width=<VALUE>, selector=dict(type='scatter'))
Type: number or array of numbers greater than or equal to 0
Sets the width (in px) of the lines bounding the marker points.
marker_size
code: go.Scatter의 marker_size 혹은 marker의 dict containing 구조로 size의 값을 value로 적용
import plotly
import plotly.graph_objects as go
x1 = [ 1, 2, 3, 4, 5 ]
y1 = [ 1, 5, 4, 8, 11 ]
x2 = [ 1, 2, 3, 4, 5 ]
y2 = [ 10, 9, 6, 3, 0 ]
fig = go.Figure()
trace1 = go.Scatter( x=x1, y=y1, mode='markers', marker_size=16 )
trace2 = go.Scatter( x=x2, y=y2, mode='markers', marker=dict(size=8) )
fig.add_trace( trace1 )
fig.add_trace( trace2 )
fig.show()
marker_symbol
*symbol 추가 설명
The 'symbol' property is an enumeration that may be specified as:
- One of the following enumeration values:
[0, '0', 'circle', 100, '100', 'circle-open', 200, '200',
'circle-dot', 300, '300', 'circle-open-dot', 1, '1',
'square', 101, '101', 'square-open', 201, '201',
'square-dot', 301, '301', 'square-open-dot', 2, '2',
'diamond', 102, '102', 'diamond-open', 202, '202',
'diamond-dot', 302, '302', 'diamond-open-dot', 3, '3',
'cross', 103, '103', 'cross-open', 203, '203',
'cross-dot', 303, '303', 'cross-open-dot', 4, '4', 'x',
104, '104', 'x-open', 204, '204', 'x-dot', 304, '304',
'x-open-dot', 5, '5', 'triangle-up', 105, '105',
'triangle-up-open', 205, '205', 'triangle-up-dot', 305,
'305', 'triangle-up-open-dot', 6, '6', 'triangle-down',
106, '106', 'triangle-down-open', 206, '206',
'triangle-down-dot', 306, '306', 'triangle-down-open-dot',
7, '7', 'triangle-left', 107, '107', 'triangle-left-open',
207, '207', 'triangle-left-dot', 307, '307',
'triangle-left-open-dot', 8, '8', 'triangle-right', 108,
'108', 'triangle-right-open', 208, '208',
'triangle-right-dot', 308, '308',
'triangle-right-open-dot', 9, '9', 'triangle-ne', 109,
'109', 'triangle-ne-open', 209, '209', 'triangle-ne-dot',
309, '309', 'triangle-ne-open-dot', 10, '10',
'triangle-se', 110, '110', 'triangle-se-open', 210, '210',
'triangle-se-dot', 310, '310', 'triangle-se-open-dot', 11,
'11', 'triangle-sw', 111, '111', 'triangle-sw-open', 211,
'211', 'triangle-sw-dot', 311, '311',
'triangle-sw-open-dot', 12, '12', 'triangle-nw', 112,
'112', 'triangle-nw-open', 212, '212', 'triangle-nw-dot',
312, '312', 'triangle-nw-open-dot', 13, '13', 'pentagon',
113, '113', 'pentagon-open', 213, '213', 'pentagon-dot',
313, '313', 'pentagon-open-dot', 14, '14', 'hexagon', 114,
'114', 'hexagon-open', 214, '214', 'hexagon-dot', 314,
'314', 'hexagon-open-dot', 15, '15', 'hexagon2', 115,
'115', 'hexagon2-open', 215, '215', 'hexagon2-dot', 315,
'315', 'hexagon2-open-dot', 16, '16', 'octagon', 116,
'116', 'octagon-open', 216, '216', 'octagon-dot', 316,
'316', 'octagon-open-dot', 17, '17', 'star', 117, '117',
'star-open', 217, '217', 'star-dot', 317, '317',
'star-open-dot', 18, '18', 'hexagram', 118, '118',
'hexagram-open', 218, '218', 'hexagram-dot', 318, '318',
'hexagram-open-dot', 19, '19', 'star-triangle-up', 119,
'119', 'star-triangle-up-open', 219, '219',
'star-triangle-up-dot', 319, '319',
'star-triangle-up-open-dot', 20, '20',
'star-triangle-down', 120, '120',
'star-triangle-down-open', 220, '220',
'star-triangle-down-dot', 320, '320',
'star-triangle-down-open-dot', 21, '21', 'star-square',
121, '121', 'star-square-open', 221, '221',
'star-square-dot', 321, '321', 'star-square-open-dot', 22,
'22', 'star-diamond', 122, '122', 'star-diamond-open',
222, '222', 'star-diamond-dot', 322, '322',
'star-diamond-open-dot', 23, '23', 'diamond-tall', 123,
'123', 'diamond-tall-open', 223, '223',
'diamond-tall-dot', 323, '323', 'diamond-tall-open-dot',
24, '24', 'diamond-wide', 124, '124', 'diamond-wide-open',
224, '224', 'diamond-wide-dot', 324, '324',
'diamond-wide-open-dot', 25, '25', 'hourglass', 125,
'125', 'hourglass-open', 26, '26', 'bowtie', 126, '126',
'bowtie-open', 27, '27', 'circle-cross', 127, '127',
'circle-cross-open', 28, '28', 'circle-x', 128, '128',
'circle-x-open', 29, '29', 'square-cross', 129, '129',
'square-cross-open', 30, '30', 'square-x', 130, '130',
'square-x-open', 31, '31', 'diamond-cross', 131, '131',
'diamond-cross-open', 32, '32', 'diamond-x', 132, '132',
'diamond-x-open', 33, '33', 'cross-thin', 133, '133',
'cross-thin-open', 34, '34', 'x-thin', 134, '134',
'x-thin-open', 35, '35', 'asterisk', 135, '135',
'asterisk-open', 36, '36', 'hash', 136, '136',
'hash-open', 236, '236', 'hash-dot', 336, '336',
'hash-open-dot', 37, '37', 'y-up', 137, '137',
'y-up-open', 38, '38', 'y-down', 138, '138',
'y-down-open', 39, '39', 'y-left', 139, '139',
'y-left-open', 40, '40', 'y-right', 140, '140',
'y-right-open', 41, '41', 'line-ew', 141, '141',
'line-ew-open', 42, '42', 'line-ns', 142, '142',
'line-ns-open', 43, '43', 'line-ne', 143, '143',
'line-ne-open', 44, '44', 'line-nw', 144, '144',
'line-nw-open', 45, '45', 'arrow-up', 145, '145',
'arrow-up-open', 46, '46', 'arrow-down', 146, '146',
'arrow-down-open', 47, '47', 'arrow-left', 147, '147',
'arrow-left-open', 48, '48', 'arrow-right', 148, '148',
'arrow-right-open', 49, '49', 'arrow-bar-up', 149, '149',
'arrow-bar-up-open', 50, '50', 'arrow-bar-down', 150,
'150', 'arrow-bar-down-open', 51, '51', 'arrow-bar-left',
151, '151', 'arrow-bar-left-open', 52, '52',
'arrow-bar-right', 152, '152', 'arrow-bar-right-open']
- A tuple, list, or one-dimensional numpy array of the above

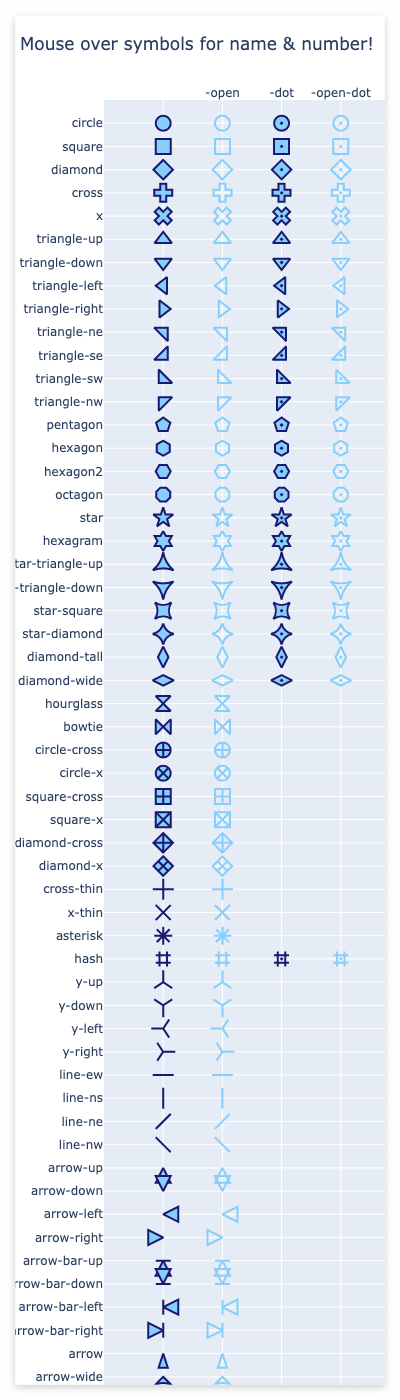

*symbol 그림
code: go.Scatter의 marker_symbol의 'x' 스타일, marker의 dict containing 구조로 symbol의 'diamond' 스타일로 변경
import plotly
import plotly.graph_objects as go
x1 = [ 1, 2, 3, 4, 5 ]
y1 = [ 1, 5, 4, 8, 11 ]
x2 = [ 1, 2, 3, 4, 5 ]
y2 = [ 10, 9, 6, 3, 0 ]
fig = go.Figure()
trace1 = go.Scatter( x=x1, y=y1, mode='markers', marker_size=16, marker_symbol='x' )
trace2 = go.Scatter( x=x2, y=y2, mode='markers', marker=dict(size= 10, symbol='diamond') )
fig.add_trace( trace1 )
fig.add_trace( trace2 )
fig.show()
marker_line_width
code: go.Scatter의 marker_line의 dict containing 구조로 width 혹은 marker dict내에 line의 dict containing 구조로 width의 값을 value로 적용
import plotly
import plotly.graph_objects as go
x1 = [ 1, 2, 3, 4, 5 ]
y1 = [ 1, 5, 4, 8, 11 ]
x2 = [ 1, 2, 3, 4, 5 ]
y2 = [ 10, 9, 6, 3, 0 ]
fig = go.Figure()
trace1 = go.Scatter( x=x1, y=y1, mode='markers', marker_size=16, marker_symbol='x', marker_line=dict(width=2) )
trace2 = go.Scatter( x=x2, y=y2, mode='markers', marker=dict(size= 10, symbol='diamond', line=dict(width=4)) )
fig.add_trace( trace1 )
fig.add_trace( trace2 )
fig.show()
output
추가적인 정보는 "Python Figure Reference: scatter Traces" 페이지를 참고 부탁드립니다.
